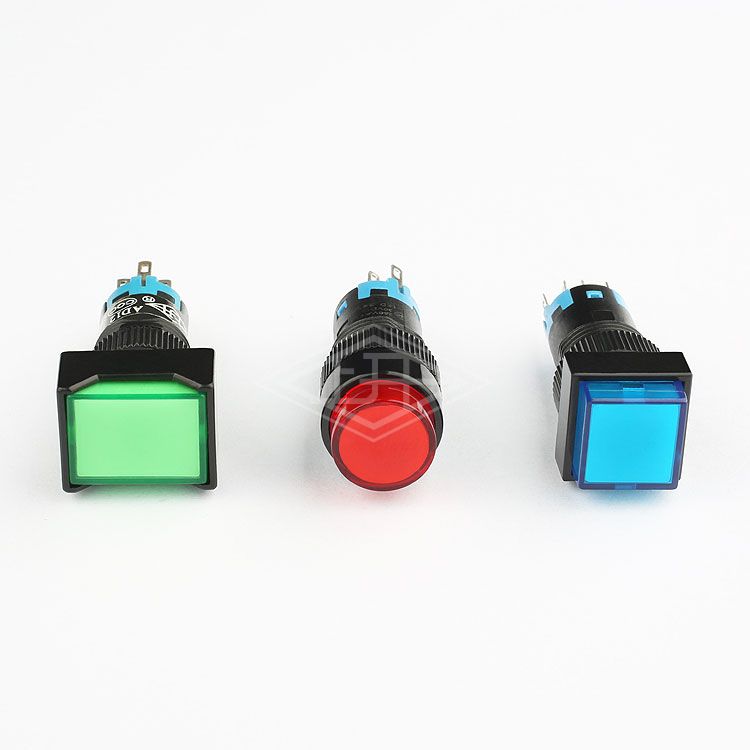

12mm 8pin push button switch 3a 250vac led illuminated push button switch self locking round bule push button switch

Current Rating: 3A

Voltage Rating: 250V AC

Model Number:  AD12-212L220D-S

Panel Cutout Dimension: Circular-12mm Dia.

Varity of colors and lamp voltages,customization available

Product introduction

Product Description

12mm 8pin push button switch 3a 250vac led illuminated push button switch self locking round bule push button switch

Place of Origin:Shanghai,China

Brand Name:SK(Shangkai) yongxing switch

Product Type:AD12-212L220D-S

Max.Rating Current:3A 250V AC
Contact Resistance:≤50mΩ
Insulation Resistance:≥100MΩ
Dielectric Strength:1500V
Electronic Life:Momentary:50,000 cycles;Alternate:25,000 cycles
Mechanical Life:Momentary:200,000 cycles;Alternate:50,000 cycles
Operating Temperature:-5℃~+75℃
IP(ingress protection):IP40
Certificate:CE CQC ROHS


Key Features

Durable Construction: These switches are built with high-quality materials such as stainless steel, aluminum, or robust plastics to ensure durability and long-term reliability in various applications.


Certifications and Compliance: High-quality push button switches adhere to industry standards and certifications such as IP ratings for ingress protection, RoHS compliance, and UL recognition, ensuring adherence to quality and safety standards.


Precision Engineering: High-quality push button switches are engineered with precision to provide consistent tactile feedback and smooth operation, enhancing user experience and satisfaction.


FAQ

1.Are there different sizes and styles of lighting button switches?

Yes, lighting button switches come in a variety of sizes, shapes and styles to suit different needs and preferences.

They range from compact miniature switches for space-constrained applications to large switches with customizable colors, symbols, and lighting effects to meet specific design requirements.


2.How to install the lighting button switch?

Installing the lighting button switch involves mounting the switch to the panel or housing using appropriate mounting hardware.

The electrical connection of the switch and LED indicator should be carried out in accordance with the specifications and wiring diagram to ensure normal function and safety.


3.Can the lighting button switch be customized with a specific symbol or label?

Yes, we offer customization options for lighting button switches that allow customers to add a specific symbol, icon or text to the switch cover to indicate its function or status.


Product Size

12mm 8pin push button switch 3a 250vac led illuminated push button switch self locking round bule push button switch
