16mm 5pin push button switch self locking led indicator push button switch red square push button switch

Current Rating: 3A

Voltage Rating: 250V AC

Model Number:  AD16-112L220V-R

Panel Cutout Dimension: Circular-16mm Dia.

Varity of colors and lamp voltages,customization available

Product introduction

Product Description

16mm 5pin push button switch self locking led indicator push button switch red square push button switch

Place of Origin:Shanghai,China

Brand Name:SK(Shangkai) yongxing switch

Product Type:AD16-112L220V-R

Max.Rating Current:3A 250V AC
Contact Resistance:≤50mΩ
Insulation Resistance:≥100MΩ
Dielectric Strength:1500V
Electronic Life:Momentary:50,000 cycles;Alternate:25,000 cycles
Mechanical Life:Momentary:200,000 cycles;Alternate:50,000 cycles
Operating Temperature:-5℃~+75℃
IP(ingress protection):IP40
Certificate:CE CQC ROHS

Key Features

Customizable:The operating parts are available in a variety of colors.

Good quality:Stable performance, multi-layer quality inspection.

Operation feel:Has a sensitive operation feel, the key feels comfortable, the operation is flexible and convenient.

FAQ

How can I choose the right size for me?

You can view the selection of specifications in the details page, or click on the small window to contact us to help you choose.

Can you provide samples? Is the sample free of charge?

Yes, we can supply a small number of samples, but you have to pay the freight.

If you need more than one piece, or a larger quantity per piece, we will charge a sample fee.

Do you guarantee the quality of your products?

The button switches produced by our company enjoy a year of after-sales service for quality problems.

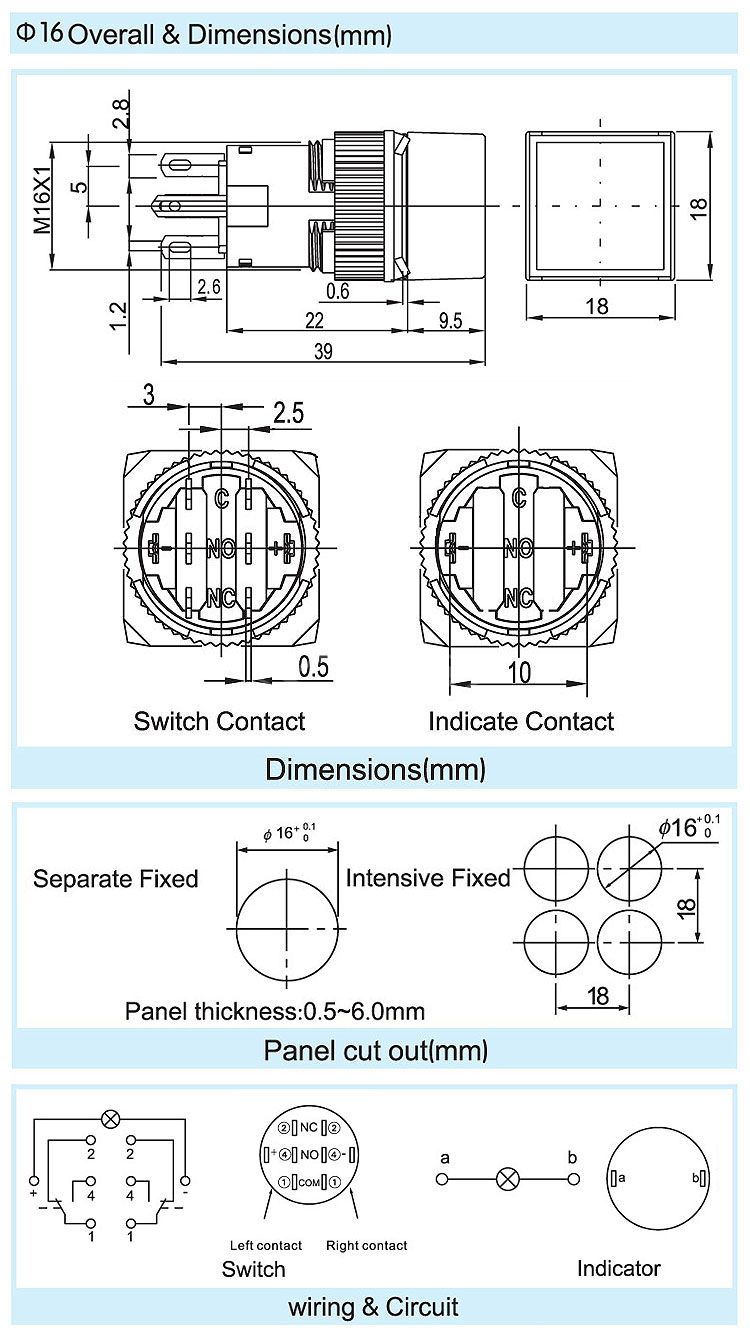

Product Size

AD16 5pins  alternate 220v red led indicator square push button switch

AD16 5pins  alternate 220v red led indicator square push button switch
