12mm 5pin push button switch 3a 250vac illuminated push button switch latching square white led lighted push button switch

Current Rating: 3A

Voltage Rating: 250V AC

Model Number:  AD12-211L12A-W

Panel Cutout Dimension: Circular-12mm Dia.

Varity of colors and lamp voltages,customization available

Product introduction

Product Description

12mm 5pin push button switch 3a 250vac illuminated push button switch latching square white led lighted push button switch

Place of Origin:Shanghai,China

Brand Name:SK(Shangkai) yongxing switch

Product Type:AD12-211L12A-W

Max.Rating Current:3A 250V AC
Contact Resistance:≤50mΩ
Insulation Resistance:≥100MΩ
Dielectric Strength:1500V
Electronic Life:Momentary:50,000 cycles;Alternate:25,000 cycles
Mechanical Life:Momentary:200,000 cycles;Alternate:50,000 cycles
Operating Temperature:-5℃~+75℃
IP(ingress protection):IP40
Certificate:CE CQC ROHS


Key Features

Variety of Actuators and Colors: Customers can often choose from a range of actuator shapes, sizes, and colors, allowing for customization to fit specific design and branding needs in machinery, control panels, instrumentation, and more.


Certifications and Compliance: High-quality push button switches adhere to industry standards and certifications such as IP ratings for ingress protection, RoHS compliance, and UL recognition, ensuring adherence to quality and safety standards.


Long Electrical Life: These switches are designed for extended electrical life cycles, enabling reliable performance over numerous actuations, making them suitable for critical and high-traffic applications where longevity is paramount.


FAQ

1: What is the function of the indicator switch?

An indicator switch, also known as a pilot light switch, is used to control the power supply to a device or circuit while providing a visual indication of the status of the switch.

It usually has a built-in indicator light that lights up when the switch is in the ON position, making it easy to identify whether the connected device is on or off.


2: What are the common voltage options for the indicator switch?

The indicator switch has a variety of voltage options to suit different applications. Common voltage options include 12V, 24V, 110V, and 220V. This product can withstand 250V


3: Can indicator switches be used in industrial environments?

Yes, it can be used in control panels, machinery, equipment and automation systems. When selecting an indicator switch for industrial use, factors such as durability,

 IP rating for dust and water resistance, and compatibility with existing electrical systems must be considered.

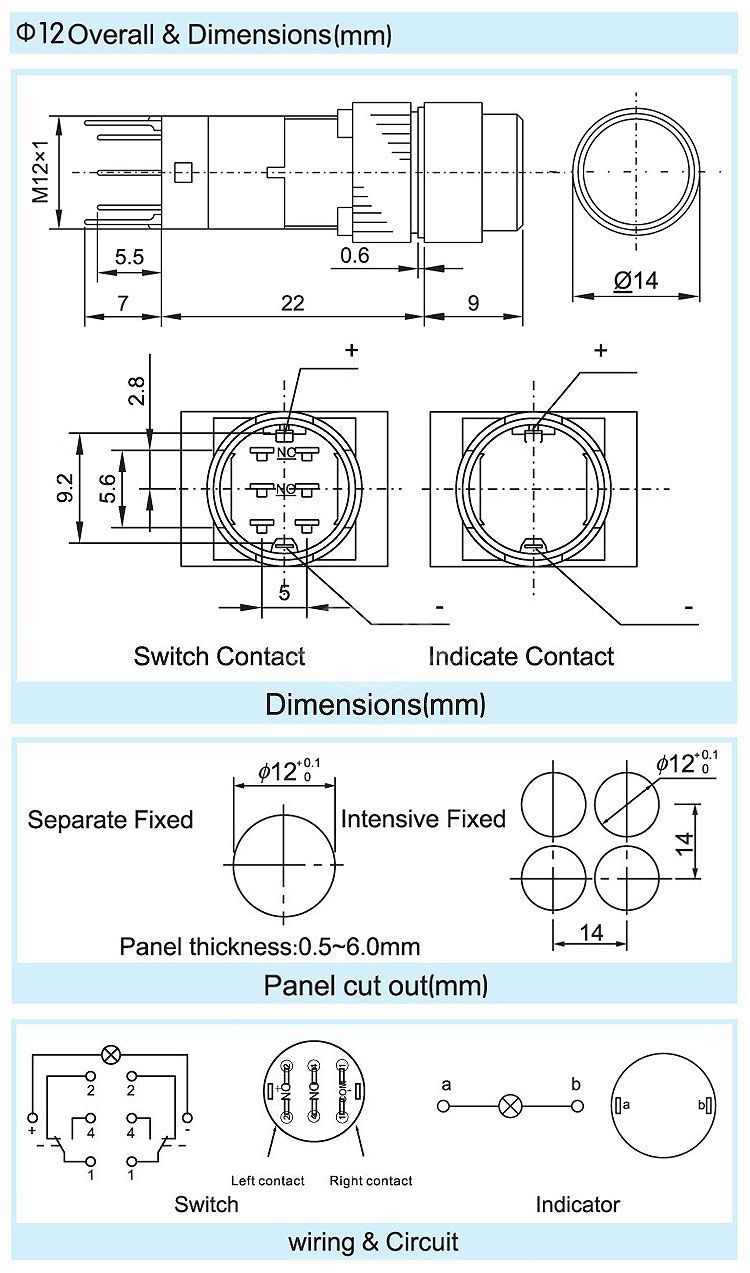

Product Size

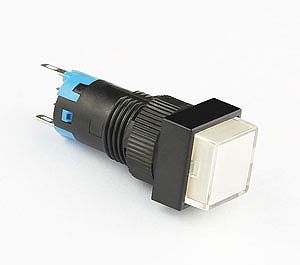

AD12 Squared 5 pins white  pushbutton switch
