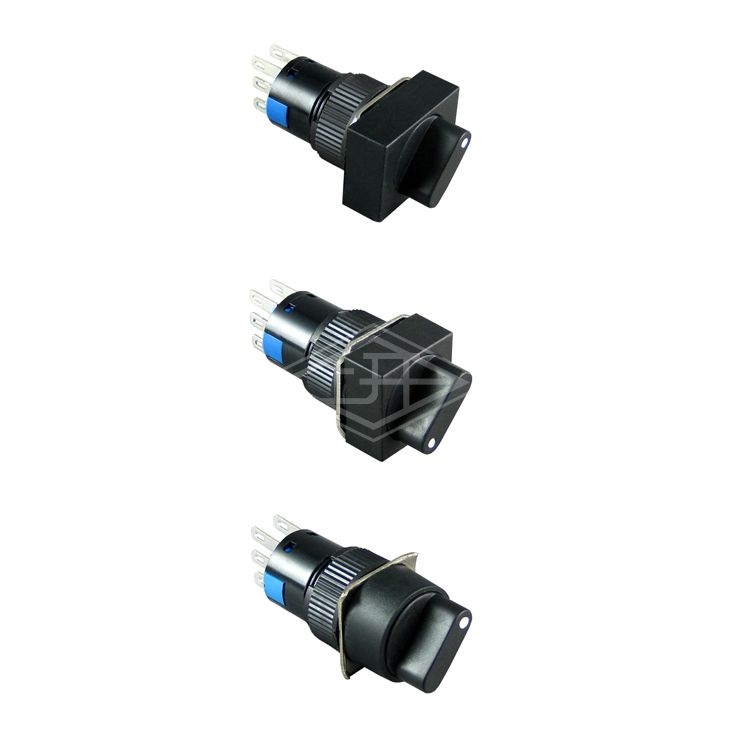

AX16 Rotary Switch

Home / Products / Electrical Accessories / Rotary Switch / AX16 Rotary Switch / factory price 3 pin 3a 250v 16mm 2 position 3 way selector rotary switches

  • factory price 3 pin 3a 250v 16mm 2 position 3 way selector rotary switches

  • factory price 3 pin 3a 250v 16mm 2 position 3 way selector rotary switches

  • factory price 3 pin 3a 250v 16mm 2 position 3 way selector rotary switches

factory price 3 pin 3a 250v 16mm 2 position 3 way selector rotary switches

Product Type:AX16-1132
Max.Rating Current:3A 250V AC
Contact Resistance≤50mΩ
Insulation Resistance:≥100MΩ
Dielectric Strength:1,500V
Electronic Life:Momentary:50,000 cycles
                          Alternate:25,000 cycles
Mechanical Life:Momentary:200,000 cycles
                             Alternate:50,000 cycles
Operating Temperature:-25℃~+55℃
Protection Degree:IP40
Certificate:CE、ROHS

Product introduction
