Current Rating: 1A
Voltage Rating: 250V AC
Model Number: FD16-111L110D-R
Panel Cutout Dimension: Circular-16mm Dia.
Varity of colors and lamp voltages,customization available
Product introduction
16mm self locking push button switch 4 pin illuminated push button switch led lighted red round pushbutton switch
| Place of Origin | Shanghai,China |
| Brand Name | SK(Shangkai) yongxing switch |
| Product Type | FD16-111L110D-R |
| Max.Rating Current | 1A 250V AC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | 100MΩ |
| Dielectric Strength | 1500V |
| Electronic Life | Momentary:10,000 cycles;Alternate:5,000 cycles |
| Mechanical Life | Momentary:50,000 cycles;Alternate:10,000 cycles |
| Operating Temperature | -25℃~+55℃ |
| IP(ingress protection) | IP40 |
| Certificate | CE CQC ROHS |
Key Feature
Luminous design: The push-button switch has a luminous function to provide clear instructions and visual effects.

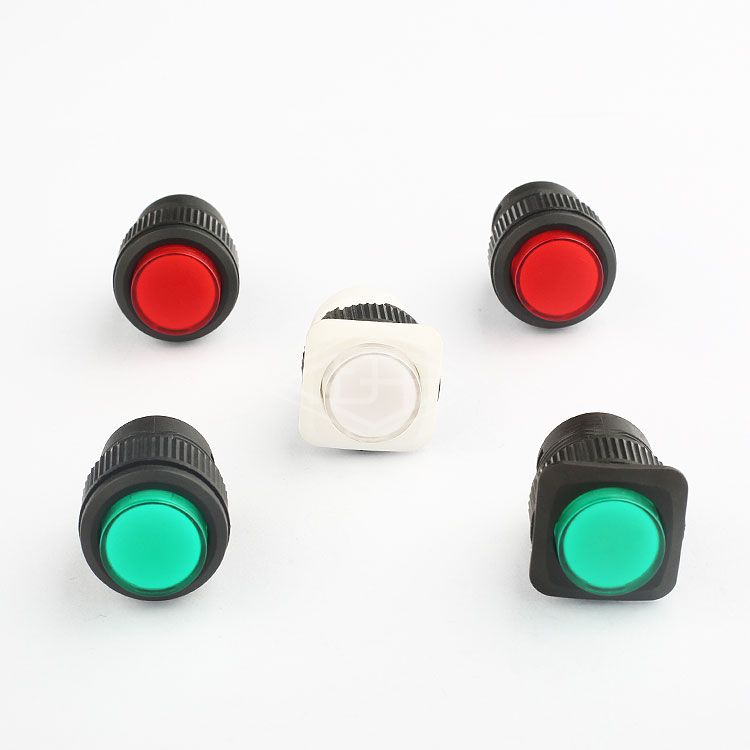

Colorful selection: It can provide a variety of color and lighting effect options to meet different user preferences and scene needs.
Sensitive trigger: The key operation is sensitive, and the button is triggered quickly when pressed, providing a fast response.
Waterproof and dustproof: with waterproof and dustproof design, suitable for a variety of indoor and outdoor environments.
FAQ
1.Are there other colors or options to customize the look?
Yes, we offer a variety of color and custom appearance options. You can choose the color that suits your needs or work with our design team to customize the look.
Please contact our sales team for more information on customization options.
2.Does this pushbutton switch pass any specific certification standards?
Our push-button switches are certified according to product type and market demand. Common certifications include CE certification, RoHS, CE, etc. Our products
comply with the relevant certification standards, and we can provide the corresponding certification documents and certificates.

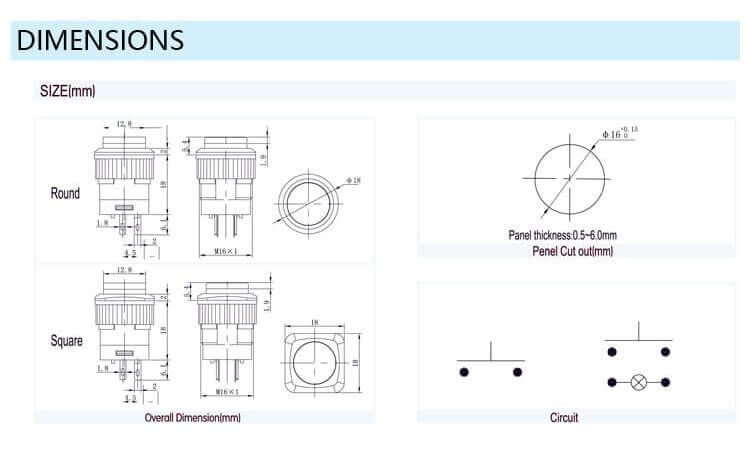

Product Size
