KCD10 Rocker Switch

Home / Products / Electrical Accessories / Rocker Switch / KCD10 Rocker Switch / KCD10 on off red waterproof 2 pins Rocker Switch

  • KCD10 on off red waterproof 2 pins Rocker Switch

  • KCD10 on off red waterproof 2 pins Rocker Switch

  • KCD10 on off red waterproof 2 pins Rocker Switch

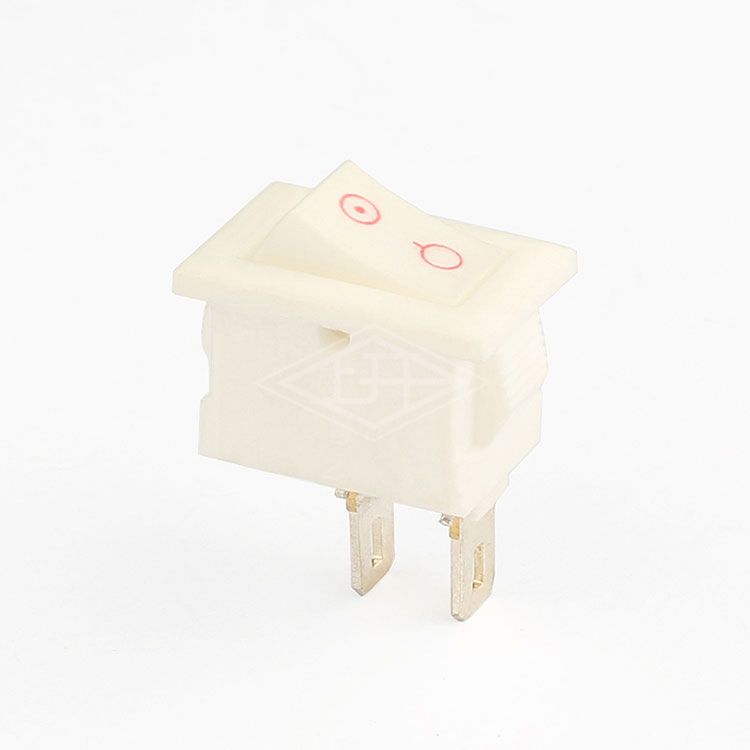

KCD10 on off red waterproof 2 pins Rocker Switch

Name:KCD10 on off red waterproof 2 pins Rocker Switch

Product Type:KCD10-11-CFI-B-R-01
Max.Rating Current:2A 250V AC
Contact Resistance:≤50mΩ
Insulation Resistance:≥1,000MΩ
Dielectric Strength:1,500VAC 1min
Electronic Life:10,000 cycles
Mechanical Life:50,000 cycles
Operating Temperature:T55,T85, T105
Protection Degree:IP40
Certificate:CE、CQC

Product introduction

KCD10 on off red waterproof 2 pins Rocker Switch

KCD10 on off red waterproof 2 pins Rocker Switch

KCD10 on off red waterproof 2 pins Rocker Switch
