Product Type：KW11-12A1
Max.Rating Current：5(1)A 250V AC ，3(3)A 250V AC
Contact Resistance：≤50mΩ
Insulation Resistance：≥1000MΩ
Dielectric Strength： 1,500V
Electronic Life：50,000 cycles
Mechanical Life：100,000 cycles
Operating Temperature：-25℃~+125℃
Protection Degree： IP40
Certificate： CQC、ENEC、ROHS
Product introduction
Product Description

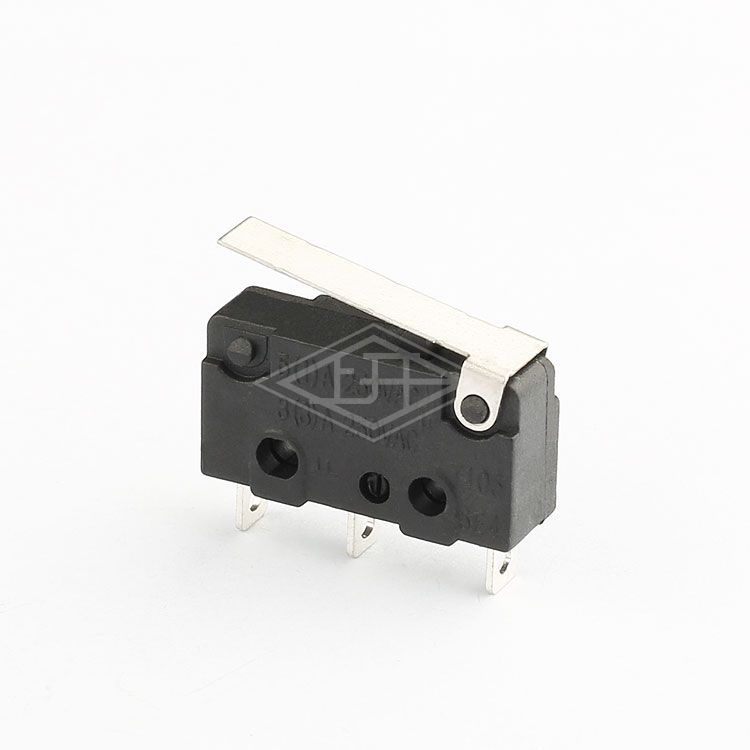

1a 250vac micro switch series terminal gray zippy micro limit switch
| Place of origin | Shanghai,China |
| Brand Name | SK(Shangkai) yongxing switch |
| Product Type | KW11-12A1 |
| Max.Rating Current | 5(1)A 250V AC ，3(3)A 250V AC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance： | ≥1000MΩ |
| Dielectric Strength | 1,500V |
| Electronic Life | 50,000 cycles |
| Mechanical Life | 100,000 cycles |
| Operating Temperature： | -25℃~+125℃ |
| Protection Degree | IP40 |
| Certificate | CQC ENEC ROHS |
Key Feature
Simple operation:The operation is simple and convenient, and the user can easily select the required gear or circuit connection mode.
High reliability: The design is stable and reliable, suitable for long-term use, reducing maintenance and replacement costs.
Sensitive trigger: The operation is sensitive, the rocker is easily triggered, providing fast response.
FAQ
1.Do switches have a lifespan?
Our switches have a long service life, are stable and reliable, and reduce replacement and maintenance costs.
2.What is the common terminal on a micro switch?
In microswitches, COM (common terminal) is a common terminal.
The wiring mode of the microswitch can be varied, of which COM can be used in combination with NC (normally closed terminal) or NO (normally open subunit).
For example, the ignition control microswitch on a gas water heater may use a combination of COM+NC;
While clicking on the mouse with a microswitch may use a COM+NO combination. In addition, there are single-pole double-throw microswitches in which COM, NC and NO terminals are used.
Product Size
