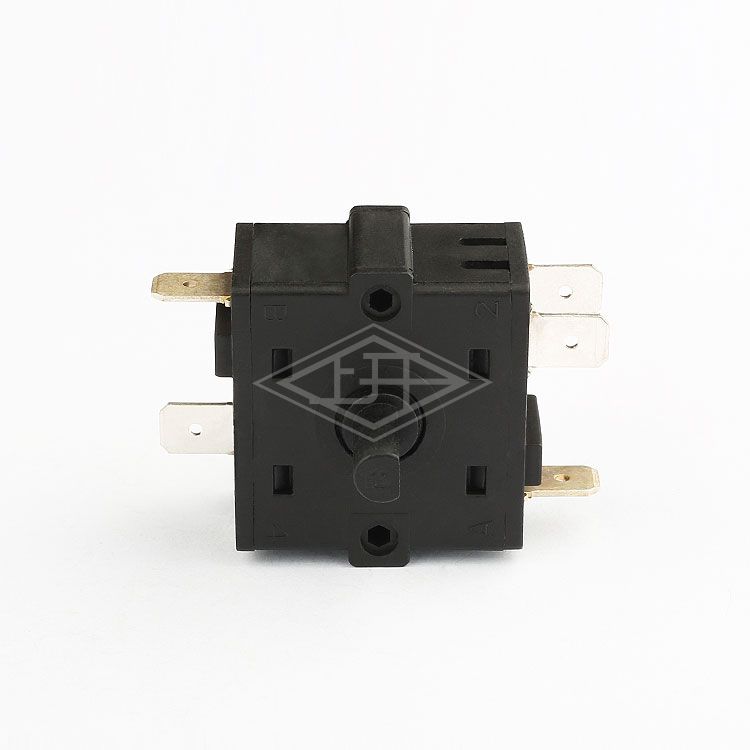

Home / Products / Electrical Accessories / Rotary Switch / RS Rotary Switch / 5E4 T125 5 pins welding machine ip40 rotary encoder switch
Product Type：RS2-24E-AAA-BBA
Max.Rating Current：16(4)A 250V AC , 8(8)A 250VAC
Contact Resistance：≤50mΩ
Insulation Resistance：≥1000MΩ
Dielectric Strength：1,500V
Electronic Life：50,000 cycles
Mechanical Life：100,000 cycles
Operating Temperature：T125
Protection Degree：IP40
Certificate：CQC、ENEC、ROHS
Product introduction
| Product Type | RS2-24E-AAA-BBA |
| Max.Rating Current | 16(4)A 250V AC , 8(8)A 250VAC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1000MΩ |
| Dielectric Strength | 1,500V |
| Electronic Life | 50,000 cycles |
| Mechanical Life | 100,000 cycles |
| Operating Temperature | T125 |
| Protection Degree | IP40 |
| Certificate | CQC、ENEC、ROHS |
Key Feature
Multi-gear design:Rotary switch adopts multi-gear design, which can realize a variety of different circuit connection modes to meet various application requirements.
Durable materials:The use of wear-resistant, high temperature resistant high-quality materials, to ensure long-term stable operation, and has a long service life.
Simple operation:The operation is simple and convenient, and the user can easily select the required gear or circuit connection mode.
FAQ
1.What circuit connections does Rotary switch work with?
Rotary switch can be used to select different circuit connections, including but not limited to unipolar, bipolar, tripolar, etc.
The specific connection depends on the product model and design.
2. How to choose the right gear or connection?
Users can choose the appropriate gear or connection mode according to the actual needs and circuit design requirements.
Usually in the product manual or specification table will provide detailed gear and connection information, users can refer to the selection.
3. Is this Rotary switch durable?
Yes, our Rotary switch is made of wear-resistant, high temperature resistant high-quality materials, designed to be rigorously tested,
with a long service life and stable and reliable performance.
Product parameter
