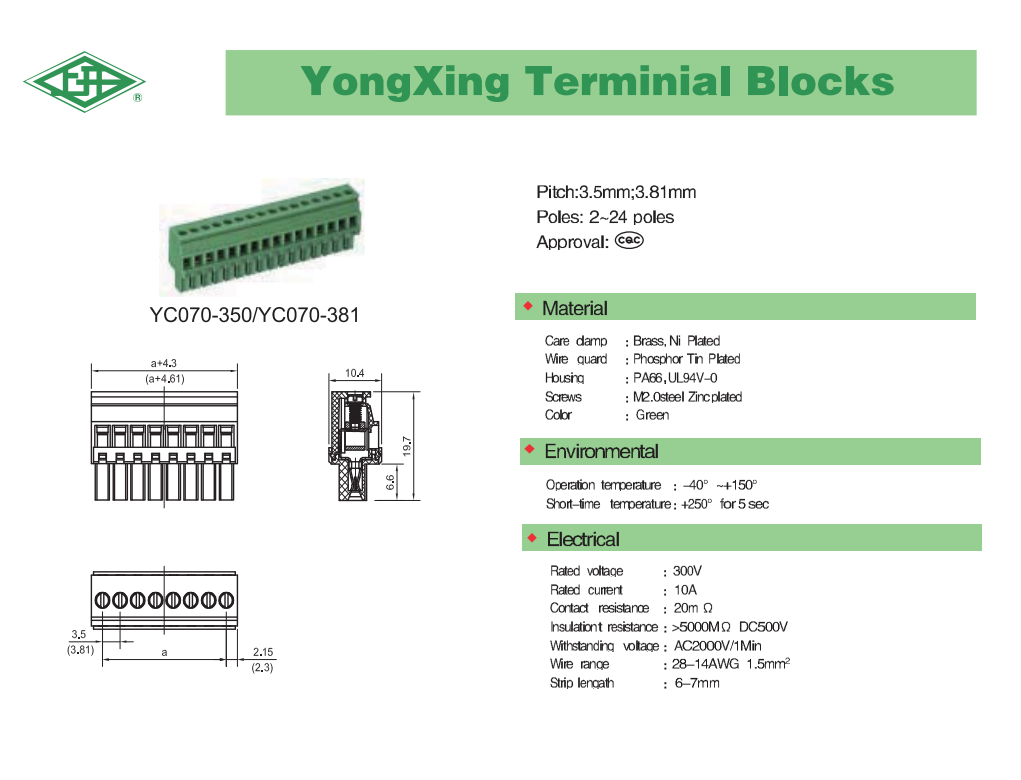

YC white PCB pluggable 12 pin plastic terminal block

Product Type:YC070-350M
Max.Rating Current:16A 300V AC
Contact Resistance:20mΩ
Insulation Resistance:>5000MΩ DC500V
Withstanding resistance: AC2000V/1Min
Operating Temperature: -40℃~150℃
Certificate:CQC
Housing:PA66,UL94V-0
Pin: Brass tin plating
Screw:Copper Zinc plating
