Home / Products / Electrical Accessories / Push Button Switch / KA Push Button Switch / 2 pin pushbutton switch 12mm 1A 250vac mini switch push button plastic normal on pushbutton switch for refrigerator door long button
Current Rating: 1A
Voltage Rating: 250V AC
Model Number: KA5-P17-NO-WW
Button Length:17mm
Panel Cutout Dimension: Circular-12mm Dia.
Varity of colors,customization available
Product introduction
Product Description
2 pin pushbutton switch 12mm 1A 250vac mini switch push button plastic normal on pushbutton switch for refrigerator door long button
| Place of Origin | Shanghai,China |
| Brand Name | SK(Shangkai) yongxing switch |
| Product Type | KA5-P17-NO-WW |
| Max.Rating Current | 1A 250V AC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ |
| Dielectric Strength | 1500V |
| Electronic Life | 10,000 cycles |
| Operating Temperature | -25℃~+55℃ |
| IP(ingress protection) | IP40 |
| Certificate | CQC CE ROHS |
Key Feature
Multiple connection methods: Provide a variety of connection methods, such as welding, plugging, etc., to meet different installation requirements.
Long life: It has a long service life and can work stably for tens of thousands of times.
Widely used: suitable for a variety of electronic equipment, instrumentation, control panel and other fields, with a wide range of applications.
FAQ
1.What is the rated current of this push-button switch?
The rated current of the push button switch is 1A, and customers can choose the right push button switch according to their circuit needs.
2.How long is the operating life of this push-button switch?
The operating life of the product depends on the frequency and quality of use, and the general electrical life is 10,000 times
3.Does this push-button switch support custom design?
Yes, this series of products provide customized design services. Customers can customize the shape, color and other characteristics of the button switch according to their own needs.

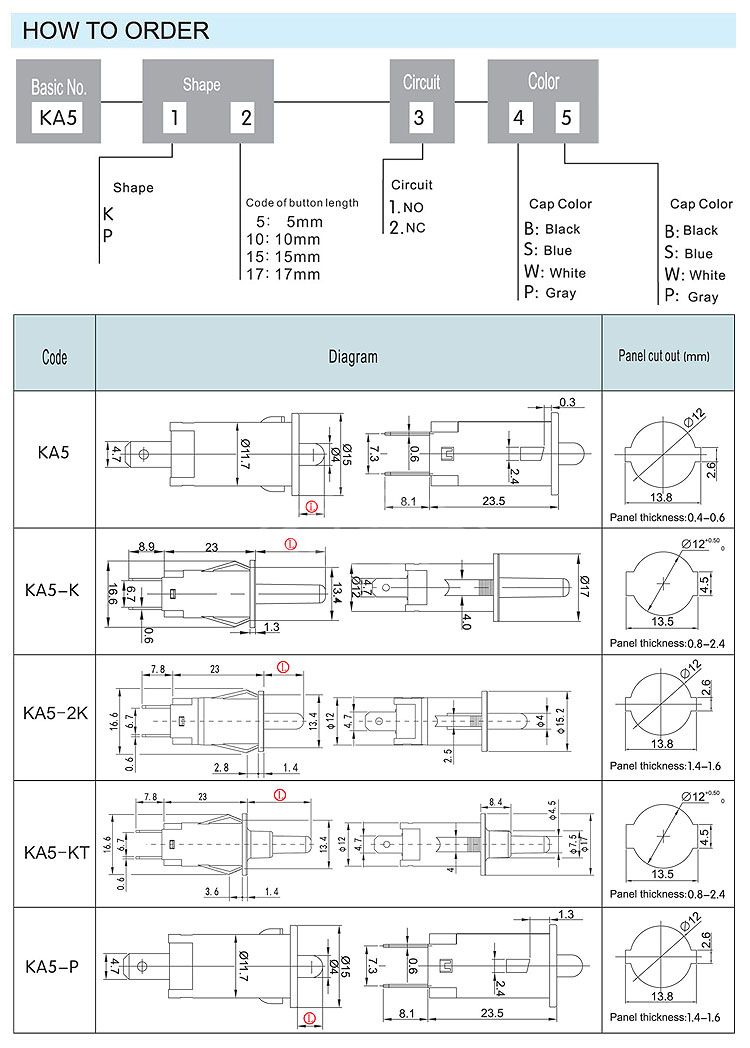

Product Size
