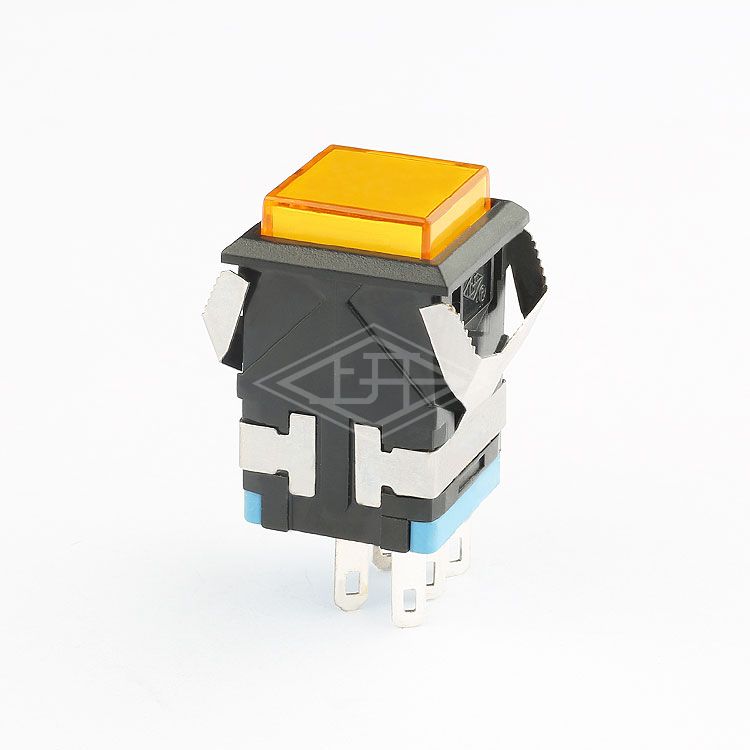

KD2 Push Button Switch

Home / Products / Electrical Accessories / Push Button Switch / KD2 Push Button Switch / led light illuminated push button switch latching double pole push button switch 8 pin power on off switch push button

  • led light illuminated push button switch latching double pole push button switch 8 pin power on off switch push button

  • led light illuminated push button switch latching double pole push button switch 8 pin power on off switch push button

  • led light illuminated push button switch latching double pole push button switch 8 pin power on off switch push button

led light illuminated push button switch latching double pole push button switch 8 pin power on off switch push button

Current Rating: 3A

Voltage Rating: 250V AC

Model Number:  KD2-B11L24-BY-Y

Panel Cutout Dimension: Square-17x17mm

Varity of colors and lamp voltages,customization available

Product introduction

Product Description

led light illuminated push button switch latching double pole push button switch 8 pin power on off switch push button

Place of Origin

Shanghai,China
Brand NameSK(Shangkai) yongxing switch
Product TypeKD2-B11L24-BY-Y
Max.Rating Current3A 250V
Contact Resistance≤50mΩ
Insulation Resistance≥100MΩ
Dielectric Strength1500V
Electronic Life10,000 cycles
Mechanical Life50,000 cycles
Operating Temperature-25℃~+55℃
IP(ingress protection)IP40
CertificateCQC CE ROHS


Key Feature

Cost-effective: provides excellent performance and quality at a relatively low price and good value for money.

Reliable and durable: It has good durability and stability, and can run stably for a long time without damage.

Full function: Provides a wealth of functions and options to meet a variety of electrical control needs.


FAQ

1.What are the common applications of illuminated push button switches?

Illuminated push button switches are commonly used in various applications where visual indication and user interface are essential.

They can be found in control panels, industrial machinery, automotive dashboards, gaming peripherals, and medical equipment, among others, to enhance usability and safety.

2.How are illuminated push button switches powered?

Illuminated push button switches are typically powered by low-voltage DC sources, such as 12V or 24V, to illuminate the built-in light source.

The power supply for the illumination is separate from the switching contacts, ensuring that the lighting function can operate independently of the switch's main function.

It is important to ensure that the power supply matches the voltage requirements of the illuminated push button switch to ensure proper functionality and longevity of the LED light source.


Product Size

kd2
