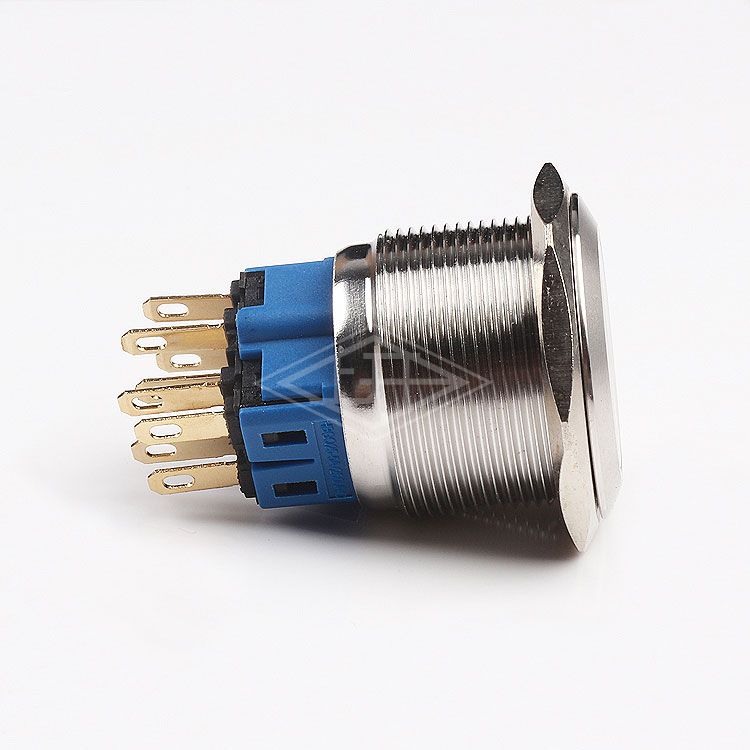

8 pin round 25mm panel pushbutton switch 5a 250vac waterproof push button switch stainless steel metal push button switch

Current Rating: 5A

Voltage Rating: 250V AC

Model Number: HBGQ25

Panel Cutout Dimension: Circular-25mm Dia.

Product introduction

8 pin round 25mm panel pushbutton switch 5a 250vac waterproof push button switch  stainless steel metal push button switch

Place of Origin:Shanghai,China

Brand Name:SK(Shangkai) yongxing switch

Product Type:HBGQ25

Max.Rating Current:5A 250V AC

Contact Configuration: 1NO1NC/2NO2NC

Operation Type:Momentary/Latching

Crust Material:Stainless Steel

The front shape:flat round

Terminal type:pin terminal (2.8x0.5mm)

Switch type:Za Double-break fast-motion changeover contact

Contact Resistance:≤50mΩ
Insulation Resistance:≥1000MΩ
Dielectric Strength:2000VAC
Electronic Life:50,000 cycles minimum
Operating Temperature:-20℃~+55℃

Panel thickness:1-6mm

Torque:5-14Nm

Operating pressure:5.5-7N

Operating stroke:about2.8mm

IP(ingress protection):IP65 IK10

Material: contact(silver alloy) button(stainless steel) case(stainless steel) base(PA)

Certificate: ROHS


Key Feature

Metal material: Made of metal material, strong and durable, with high texture and high-quality appearance.

Waterproof and dust-proof design: with waterproof and dust-proof function, suitable for use in various harsh environments.

Sensitive trigger: sensitive operation, quick button trigger, provide quick response.


FAQ

1.Does this metal pushbutton switch work with which devices?

Our metal push button switches are suitable for all kinds of equipment, such as electronic equipment, control panels, instruments, etc., with a wide range of applications.

2.Is this push-button switch available in other colors?

Yes, our metal pushbutton switches may be available in a variety of color options to meet different user preferences and device appearance needs.


Product Size

metal
